View In:   ArcGIS Online Map Viewer

Name: GEOD_Survey_Control

Display Field: NAME

Type: Feature Layer

Geometry Type: esriGeometryPoint

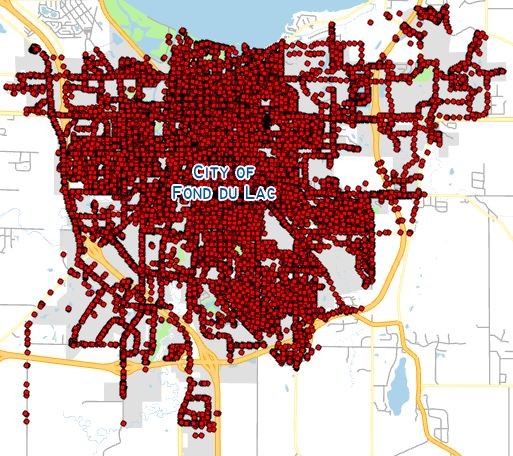

Description: The survey control layer depicts all the survey control points within the city of Fond du Lac, Wisconsin. It has information about the ID, location, and survey attributes. The City Engineering & Traffic Division in the Department of Public Works maintains the data.

Service Item Id: d207dd603c2642efb6c9064e4806e244

Copyright Text:

Default Visibility: false

MaxRecordCount: 2000

MaxSelectionCount: 0

Supported Query Formats: JSON, geoJSON, PBF

Min Scale: 0.0

Max Scale: 0.0

Supports Advanced Queries: true

Supports Statistics: true

Can Scale Symbols: false

Use Standardized Queries: true

Supports ValidateSQL: true

Supports Calculate: true

Supports Datum Transformation: true

Extent:

XMin: 803583.1133552454
YMin: 357732.8848512396
XMax: 838062.9226763286
YMax: 398052.92691440135
Spatial Reference: 103419  (103419)  LatestVCSWkid(0)

Drawing Info:

Renderer:
Simple Renderer:
Symbol:
Style: esriSMSCircle
Color: [36, 80, 130, 255]
Size: 4.0
Angle: 0.0
XOffset: 0
YOffset: 0
Outline:
[0, 0, 0, 255] Width: 0
Label: N/A
Description: N/A
Transparency: 0
Labeling Info:

Feature Draw Order:

N/A

Advanced Query Capabilities:

Supports Statistics: true
Supports OrderBy: true
Supports Distinct: true
Supports Pagination: true
Supports TrueCurve: false
Supports Returning Query Extent: true
Supports Query With Distance: true
Supports Sql Expression: true
Supports Query With ResultType: true
Supports Returning Geometry Centroid: false
Supports Binning LOD: false
Supports Query With LOD Spatial Reference: false
Supports Percentile Statistics: true
Supports Having Clause: true
Supports Count Distinct: true
Supports Time Relation: false
Supports Sql Format: false
Supports Query Analytic: true
Supports Query With Current User: true

HasZ: false

HasM: false

Has Attachments: false

HTML Popup Type: esriServerHTMLPopupTypeAsHTMLText

Type ID Field:

Fields:

• objectid ( type: esriFieldTypeOID, alias: OBJECTID, editable: false, nullable: false, defaultValue: null, modelName: OBJECTID )
• name_int ( type: esriFieldTypeInteger, alias: Survey Structure ID, editable: true, nullable: true, defaultValue: null, modelName: SUR_STRUC_ID )
• feat_code ( type: esriFieldTypeString, alias: FEAT_CODE, editable: true, nullable: true, length: 50, defaultValue: null, modelName: FEAT_CODE , Coded Values: [ELEV: Elevation] , [ELBX: Electrical Box] , [ELLO: Electrical Loop] , ...93 more... )
• desc_ ( type: esriFieldTypeString, alias: Description, editable: true, nullable: true, length: 11, defaultValue: null, modelName: DESC )
• northing ( type: esriFieldTypeDouble, alias: Northing, editable: true, nullable: true, defaultValue: null, modelName: NORTHING )
• easting ( type: esriFieldTypeDouble, alias: Easting, editable: true, nullable: true, defaultValue: null, modelName: EASTING )
• elevation ( type: esriFieldTypeDouble, alias: Elevation, editable: true, nullable: true, defaultValue: null, modelName: ELEVATION )
• start_time ( type: esriFieldTypeDate, alias: Start Time, editable: true, nullable: true, length: 8, defaultValue: null, modelName: LOCDATE )
• stop_time ( type: esriFieldTypeDate, alias: Stop Time, editable: true, nullable: true, length: 8, defaultValue: null, modelName: STOP_TIME )
• old_loc ( type: esriFieldTypeString, alias: Old Location, editable: true, nullable: true, length: 3, defaultValue: No, modelName: OLD_LOC )
• globalid ( type: esriFieldTypeGlobalID, alias: GlobalID, editable: false, nullable: false, length: 38, defaultValue: null, modelName: GlobalID )
• creator ( type: esriFieldTypeString, alias: Creator, editable: false, nullable: true, length: 50, defaultValue: null, modelName: CREATE_USR )
• creationdateloc ( type: esriFieldTypeDate, alias: Created On, editable: true, nullable: true, length: 8, defaultValue: null, modelName: CREATE_DT )
• locno ( type: esriFieldTypeInteger, alias: Location Number, editable: true, nullable: true, defaultValue: null, modelName: LOCNO )
• editor ( type: esriFieldTypeString, alias: Editor, editable: false, nullable: true, length: 50, defaultValue: null, modelName: LST_EDT_USR )
• editdateloc ( type: esriFieldTypeDate, alias: Edited On, editable: true, nullable: true, length: 8, defaultValue: null, modelName: LST_EDT_DT )
• shp_file_nm ( type: esriFieldTypeString, alias: SHP_FILE_NM, editable: true, nullable: true, length: 50, defaultValue: null, modelName: SHP_FILE_NM )
• gis_name ( type: esriFieldTypeInteger, alias: Survey Structure ID 2, editable: true, nullable: true, defaultValue: null, modelName: GIS_NAME )
• accuracy ( type: esriFieldTypeString, alias: Accuracy, editable: true, nullable: true, length: 12, defaultValue: Survey Grade, modelName: ACCURACY )
• creationdate ( type: esriFieldTypeDate, alias: Created On (UTC), editable: true, nullable: true, length: 8, defaultValue: null, modelName: CREATIONDATE )
• editdate ( type: esriFieldTypeDate, alias: Edited On (UTC), editable: true, nullable: true, length: 8, defaultValue: null, modelName: EDITDATE )
• attribute_type ( type: esriFieldTypeString, alias: Attribute Type, editable: true, nullable: true, length: 50, defaultValue: null, modelName: ATTRIBUTE_TYPE )
• attribute_value ( type: esriFieldTypeString, alias: Attribute Value, editable: true, nullable: true, length: 50, defaultValue: null, modelName: ATTRIBUTE_VALUE )
• archive ( type: esriFieldTypeString, alias: Archive, editable: true, nullable: true, length: 1, defaultValue: null, modelName: ARCHIVE , Coded Values: [Y: Yes] )
• receiver ( type: esriFieldTypeString, alias: Receiver, editable: true, nullable: true, length: 5, defaultValue: null, modelName: RECEIVER )
• deleted ( type: esriFieldTypeString, alias: Deleted?, editable: true, nullable: true, length: 5, defaultValue: null, modelName: DELETED )
• job ( type: esriFieldTypeString, alias: JOB, editable: true, nullable: true, length: 30, defaultValue: null, modelName: JOB )
• point_timestamp ( type: esriFieldTypeDate, alias: Point Timestamp, editable: true, nullable: true, length: 8, defaultValue: null, modelName: POINT_TIMESTAMP )
• name ( type: esriFieldTypeString, alias: NAME, editable: true, nullable: true, length: 50, defaultValue: null, modelName: NAME )
• code ( type: esriFieldTypeString, alias: CODE, editable: true, nullable: true, length: 50, defaultValue: null, modelName: CODE )
• method ( type: esriFieldTypeString, alias: METHOD, editable: true, nullable: true, length: 50, defaultValue: null, modelName: METHOD )
• survey_method ( type: esriFieldTypeString, alias: SURVEY_METHOD, editable: true, nullable: true, length: 50, defaultValue: null, modelName: SURVEY_METHOD )
• classification ( type: esriFieldTypeString, alias: CLASSIFICATION, editable: true, nullable: true, length: 50, defaultValue: null, modelName: CLASSIFICATION )
• source ( type: esriFieldTypeString, alias: SOURCE, editable: true, nullable: true, length: 50, defaultValue: null, modelName: SOURCE )
• point_name ( type: esriFieldTypeString, alias: Point Name, editable: true, nullable: true, length: 20, defaultValue: null, modelName: POINT_NAME )
• point_id ( type: esriFieldTypeString, alias: Point ID, editable: true, nullable: true, length: 20, defaultValue: null, modelName: POINT_ID )
• recorder ( type: esriFieldTypeString, alias: Recorder, editable: true, nullable: true, length: 20, defaultValue: null, modelName: RECORDER )
• value ( type: esriFieldTypeString, alias: Value, editable: true, nullable: true, length: 50, defaultValue: null, modelName: VALUE )
• type ( type: esriFieldTypeString, alias: Type, editable: true, nullable: true, length: 50, defaultValue: null, modelName: TYPE )
• created ( type: esriFieldTypeDate, alias: created, editable: false, nullable: true, length: 8, defaultValue: null, modelName: created )
• edited ( type: esriFieldTypeDate, alias: edited, editable: false, nullable: true, length: 8, defaultValue: null, modelName: edited )

Templates:

• Name: GEOD_Survey_Control
  Description:
  Prototype:
  recorder: null
  name_int: null
  feat_code: null
  desc_: null
  northing: null
  easting: null
  elevation: null
  start_time: null
  stop_time: null
  old_loc: No
  point_id: null
  type: null
  creationdateloc: null
  locno: null
  value: null
  editdateloc: null
  shp_file_nm: null
  gis_name: null
  accuracy: Survey Grade
  creationdate: null
  editdate: null
  attribute_type: null
  attribute_value: null
  archive: null
  receiver: null
  deleted: null
  job: null
  point_timestamp: null
  name: null
  code: null
  method: null
  survey_method: null
  classification: null
  source: null
  point_name: null

  Drawing Tool: esriFeatureEditToolPoint

Capabilities: Query

Sync Can Return Changes: true

Is Data Versioned: true

Supports Rollback On Failure: false

Supports ApplyEdits With Global Ids: false

Edit Fields Info:

• Creation Date Field: created
• Creator Field: creator
• Edit Date Field: edited
• Editor Field: editor

Supports Query With Historic Moment: false

Supports Coordinates Quantization: true

Child Resources:

Supported Operations:   Query   Query Analytic   Append   Validate SQL   Generate Renderer   Return Updates   Iteminfo   Thumbnail   Metadata
