View In:   ArcGIS Online Map Viewer

Name: UTIL_Storm_Drainage_Basin

Display Field: dwaterbody

Type: Feature Layer

Geometry Type: esriGeometryPolygon

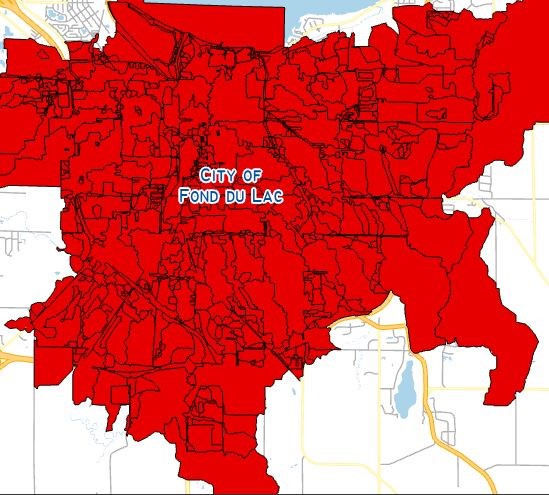

Description: The drainage basins layer depicts all the drainage basins within the city of Fond du Lac, Wisconsin. It has information about the drainage basin water body, basin owner, and outfall information. The City Engineering & Traffic Division in the Department of Public Works maintains the data.

Service Item Id: ca9026502531477591fa226feb996a39

Copyright Text:

Default Visibility: false

MaxRecordCount: 2000

Supported Query Formats: JSON, geoJSON, PBF

Min Scale: 0

Max Scale: 0

Supports Advanced Queries: true

Supports Statistics: true

Can Scale Symbols: false

Use Standardized Queries: true

Supports ValidateSQL: true

Supports Calculate: true

Supports Datum Transformation: true

Extent:

XMin: 797881.7484456636
YMin: 358922.2430368215
XMax: 850067.5889556631
YMax: 400056.56956065446
Spatial Reference: 103419  (103419)

Drawing Info:

Renderer:
Simple Renderer:
Symbol:
Style: esriSFSSolid
Color: [238, 209, 252, 255]
Outline:
Style: esriSLSSolid
Color: [110, 110, 110, 255]
Width: 0
Label: N/A
Description: N/A
Transparency: 0
Labeling Info:

Advanced Query Capabilities:

Supports Statistics: true
Supports OrderBy: true
Supports Distinct: true
Supports Pagination: true
Supports TrueCurve: true
Supports Returning Query Extent: true
Supports Query With Distance: true
Supports Sql Expression: true
Supports Query With ResultType: true
Supports Returning Geometry Centroid: false
Supports Binning LOD: false
Supports Query With LOD Spatial Reference: false

HasZ: false

HasM: false

Has Attachments: false

HTML Popup Type: esriServerHTMLPopupTypeAsHTMLText

Type ID Field:

Fields:

• objectid ( type: esriFieldTypeOID, alias: OBJECTID, editable: false, nullable: false, defaultValue: null, modelName: OBJECTID )
• dwaterbody ( type: esriFieldTypeString, alias: First Downstream Water Body, editable: true, nullable: false, length: 2, defaultValue: null, modelName: DWaterBody , Coded Values: [LW: Lake Winnebago] , [F: Fond du Lac River] , [FE: East Branch Fond du Lac River] , ...14 more... )
• dsysowner ( type: esriFieldTypeString, alias: Drainage System Owner, editable: true, nullable: false, length: 7, defaultValue: null, modelName: DSysOwner , Coded Values: [CiFdL: City of Fond du Lac] , [CoFdL: Fond du Lac County] , [M: Multiple] , ...10 more... )
• dbpm ( type: esriFieldTypeString, alias: Last Downstream BMP, editable: true, nullable: true, length: 255, defaultValue: null, modelName: DBPM )
• basinid ( type: esriFieldTypeString, alias: Basin ID, editable: true, nullable: false, length: 30, defaultValue: null, modelName: BasinID )
• dpumpstation ( type: esriFieldTypeString, alias: Downstream Pump Station Name, editable: true, nullable: true, length: 30, defaultValue: null, modelName: DPumpStation )
• lastdoutfall ( type: esriFieldTypeString, alias: Last Downstream Outfall, editable: true, nullable: true, length: 30, defaultValue: null, modelName: LastDOutfall )
• note ( type: esriFieldTypeString, alias: Note, editable: true, nullable: true, length: 255, defaultValue: null, modelName: Note )
• creator ( type: esriFieldTypeString, alias: Creator, editable: true, nullable: true, length: 50, defaultValue: null, modelName: CREATE_USR )
• editor ( type: esriFieldTypeString, alias: Editor, editable: true, nullable: true, length: 50, defaultValue: null, modelName: LST_EDT_USR )
• dswetland ( type: esriFieldTypeString, alias: Downstream Wetland, editable: true, nullable: true, length: 50, defaultValue: null, modelName: DSWETLAND , Coded Values: [NO: No] , [YES: Yes] )
• createdate ( type: esriFieldTypeDate, alias: Created, editable: true, nullable: true, length: 8, defaultValue: null, modelName: CREATIONDATE )
• editdate ( type: esriFieldTypeDate, alias: Edited, editable: true, nullable: true, length: 8, defaultValue: null, modelName: EDITDATE )
• hyduntcd ( type: esriFieldTypeString, alias: Hydrologic Unit Code 10, editable: true, nullable: true, length: 10, defaultValue: null, modelName: HYDUNTCD , Coded Values: [0403020301: West Shore of Lake Winnebago] , [0403020302: Fond du Lac River] , [0403020303: East Shore of Lake Winnebago] , ...1 more... )
• hyduntcd12 ( type: esriFieldTypeString, alias: Hydrologic Unit Code 12, editable: true, nullable: true, length: 20, defaultValue: null, modelName: HYDUNTCD12 , Coded Values: [040302030103: Van Dyne Creek-Lake Winnebago] , [040302030203: Parsons Creek- East Branch of the Fond du Lac River] , [040302030204: Eldorado Marsh-Fond du Lac River] , ...3 more... )
• dsbmpowner ( type: esriFieldTypeString, alias: Alias DS BMP Owner, editable: true, nullable: true, length: 50, defaultValue: null, modelName: DSBMPOWNER , Coded Values: [NONE: None] , [CITYFDL: City of Fond du Lac] , [FDLCTY: Fond du Lac County] , ...4 more... )
• dsbmptype ( type: esriFieldTypeString, alias: DS BMP Type, editable: true, nullable: true, length: 50, defaultValue: null, modelName: DSBMPTYPE , Coded Values: [BIOFLTR: Biofilter] , [BIORTN: Bioretention] , [CTHBSNSMP: Catch Basin Sump] , ...16 more... )
• fusbmplof ( type: esriFieldTypeString, alias: First USBMP from Last Oufall, editable: true, nullable: true, length: 255, defaultValue: null, modelName: FUSBMPLOF )
• susbmplof ( type: esriFieldTypeString, alias: Second USBMP from Last Outfall, editable: true, nullable: true, length: 255, defaultValue: null, modelName: SUSBMPLOF )
• fioflof ( type: esriFieldTypeString, alias: First Inter Outfall from Last Outfall, editable: true, nullable: true, length: 255, defaultValue: null, modelName: FIOFLOF )
• sioflof ( type: esriFieldTypeString, alias: Second Inter Outfall from Last Outfall, editable: true, nullable: true, length: 255, defaultValue: null, modelName: SIOFLOF )
• status ( type: esriFieldTypeString, alias: Status, editable: true, nullable: true, length: 20, defaultValue: null, modelName: STATUS , Coded Values: [ABANDONED: Abandoned] , [ACTIVE: Active] , [INACTIVE: Inactive] , ...1 more... )
• basintype ( type: esriFieldTypeString, alias: Basin Type, editable: true, nullable: true, length: 50, defaultValue: null, modelName: BASINTYPE , Coded Values: [RIPARIAN: Riparian] , [OUTFALL: Outfall] , [SWBMP SUBBASIN: Stormwater BMP Subbasin] , ...3 more... )
• subbasinid ( type: esriFieldTypeString, alias: Sub-Basin ID, editable: true, nullable: true, length: 20, defaultValue: null, modelName: SUBBASINID )
• tmdlsubbasin ( type: esriFieldTypeString, alias: TMDL Subbasin, editable: true, nullable: true, length: 100, defaultValue: null, modelName: TMDLSubbasin , Coded Values: [34: Mosher Creek (34)] , [43: East Branch Fond du Lac River (43)] , [44: West Branch Fond du Lac River (44)] , ...2 more... )
• globalid ( type: esriFieldTypeGlobalID, alias: globalid, editable: false, nullable: false, length: 38, defaultValue: null, modelName: globalid )
• Shape__Area ( type: esriFieldTypeDouble, alias: st_area(shape), editable: false, nullable: false, defaultValue: null, modelName: st_area(shape) )
• Shape__Length ( type: esriFieldTypeDouble, alias: st_length(shape), editable: false, nullable: false, defaultValue: null, modelName: st_length(shape) )

Templates:

• Name: UTIL_Storm_Drainage_Basin
  Description:
  Prototype:
  tmdlsubbasin: null
  subbasinid: null
  dwaterbody:
  dsysowner:
  dbpm: null
  basinid:
  dpumpstation: null
  lastdoutfall: null
  note: null
  creator: null
  editor: null
  dswetland: null
  createdate: null
  editdate: null
  hyduntcd: null
  hyduntcd12: null
  dsbmpowner: null
  dsbmptype: null
  fusbmplof: null
  susbmplof: null
  fioflof: null
  sioflof: null
  status: null
  basintype: null

  Drawing Tool: esriFeatureEditToolPolygon

Capabilities: Query

Sync Can Return Changes: false

Is Data Versioned: false

Supports Rollback On Failure: true

Supports ApplyEdits With Global Ids: true

Supports Query With Historic Moment: false

Supports Coordinates Quantization: true

Supported Operations:   Query   Query Attachments   Query Analytic   Calculate   Validate SQL   Generate Renderer   Return Updates   Iteminfo   Thumbnail   Metadata
