View In:   ArcGIS Online Map Viewer

Name: UTIL_Storm_Fittings_Joints

Display Field: status

Type: Feature Layer

Geometry Type: esriGeometryPoint

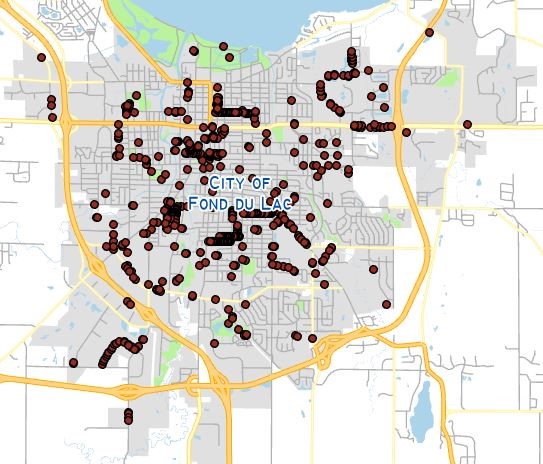

Description: The storm fittings joints layer depicts all the storm fittings and joints within the city of Fond du Lac, Wisconsin. It has information about the status, owner, type, etc. The City Engineering & Traffic Division in the Department of Public Works maintains the data.

Service Item Id: ca9026502531477591fa226feb996a39

Copyright Text:

Default Visibility: false

MaxRecordCount: 2000

Supported Query Formats: JSON, geoJSON, PBF

Min Scale: 0

Max Scale: 0

Supports Advanced Queries: true

Supports Statistics: true

Can Scale Symbols: false

Use Standardized Queries: true

Supports ValidateSQL: true

Supports Calculate: true

Supports Datum Transformation: true

Extent:

XMin: 805634.9183067456
YMin: 367411.47573024035
XMax: 836195.3771988302
YMax: 394394.7662517354
Spatial Reference: 103419  (103419)

Drawing Info:

Renderer:
Simple Renderer:
Symbol:
Style: esriSMSCircle
Color: [103, 58, 130, 255]
Size: 4.0
Angle: 0.0
XOffset: 0
YOffset: 0
Outline:
[0, 0, 0, 255] Width: 0
Label: N/A
Description: N/A
Transparency: 0
Labeling Info:

Advanced Query Capabilities:

Supports Statistics: true
Supports OrderBy: true
Supports Distinct: true
Supports Pagination: true
Supports TrueCurve: true
Supports Returning Query Extent: true
Supports Query With Distance: true
Supports Sql Expression: true
Supports Query With ResultType: true
Supports Returning Geometry Centroid: false
Supports Binning LOD: false
Supports Query With LOD Spatial Reference: false

HasZ: false

HasM: false

Has Attachments: false

HTML Popup Type: esriServerHTMLPopupTypeAsHTMLText

Type ID Field:

Fields:

• objectid ( type: esriFieldTypeOID, alias: OBJECTID, editable: false, nullable: false, defaultValue: null, modelName: OBJECTID )
• status ( type: esriFieldTypeString, alias: Status, editable: true, nullable: true, length: 20, defaultValue: PROPOSED, modelName: STATUS , Coded Values: [ABANDONED: Abandoned] , [ACTIVE: Active] , [HISTORIC: Historic] , ...3 more... )
• owner ( type: esriFieldTypeString, alias: Owner, editable: true, nullable: true, length: 50, defaultValue: CITY, modelName: OWNER , Coded Values: [CITY: City] , [CITY & COUNTY: City & County] , [CITY & TOWN: City & Town] , ...9 more... )
• constructed ( type: esriFieldTypeSmallInteger, alias: Constructed, editable: true, nullable: true, defaultValue: null, modelName: YEAR_CONSTRUCTED )
• type ( type: esriFieldTypeString, alias: Type, editable: true, nullable: true, length: 20, defaultValue: null, modelName: TYPE , Coded Values: [ANTI-SEEP COLLAR: Anti-Seep Collar] , [BEND: Bend] , [CAP: Cap] , ...13 more... )
• dimension ( type: esriFieldTypeString, alias: Dimension, editable: true, nullable: true, length: 20, defaultValue: null, modelName: DIMENSION )
• bend ( type: esriFieldTypeString, alias: Bend, editable: true, nullable: true, length: 20, defaultValue: null, modelName: BEND , Coded Values: [11 1/4: 11 1/4] , [22 1/2: 22 1/2] , [45: 45] , ...1 more... )
• flowline_elevation ( type: esriFieldTypeDouble, alias: Flowline Elevation, editable: true, nullable: true, defaultValue: null, modelName: FLOWLINE_ELEVATION )
• antiseep_collar_type ( type: esriFieldTypeString, alias: Anti-Seep Collar Type, editable: true, nullable: true, length: 20, defaultValue: null, modelName: ANTISEEP_COLLAR_TYPE , Coded Values: [BENTONITE: Bentonite] , [CLAY: Clay] , [CLAY/STONE COMPOSITE: Clay/Stone Composite] , ...6 more... )
• source_accuracy ( type: esriFieldTypeString, alias: Source/Accuracy, editable: true, nullable: true, length: 20, defaultValue: null, modelName: DATA_SOURCE , Coded Values: [DIGITIZED: Digitized] , [DOWN: Down (measured)] , [FIELD VERIFIED: Field Verified (visual)] , ...12 more... )
• notes ( type: esriFieldTypeString, alias: Notes, editable: true, nullable: true, length: 100, defaultValue: null, modelName: NOTES )
• creator ( type: esriFieldTypeString, alias: Creator, editable: true, nullable: true, length: 50, defaultValue: null, modelName: CREATOR )
• editor ( type: esriFieldTypeString, alias: Editor, editable: true, nullable: true, length: 50, defaultValue: null, modelName: EDITOR )
• createdate ( type: esriFieldTypeDate, alias: Created, editable: true, nullable: true, length: 8, defaultValue: null, modelName: CREATEDATE )
• editdate ( type: esriFieldTypeDate, alias: Edited, editable: true, nullable: true, length: 8, defaultValue: null, modelName: EDITDATE )
• basin ( type: esriFieldTypeString, alias: Basin, editable: true, nullable: true, length: 50, defaultValue: null, modelName: BASIN )
• branch ( type: esriFieldTypeString, alias: Branch, editable: true, nullable: true, length: 2, defaultValue: null, modelName: BRANCH )
• id ( type: esriFieldTypeString, alias: ID, editable: true, nullable: true, length: 30, defaultValue: null, modelName: STRUCTURE_ID )
• first_basin ( type: esriFieldTypeString, alias: First Basin, editable: true, nullable: true, length: 10, defaultValue: null, modelName: FIRST_BASIN )
• globalid ( type: esriFieldTypeGlobalID, alias: globalid, editable: false, nullable: false, length: 38, defaultValue: null, modelName: globalid )

Templates:

• Name: UTIL_Storm_Fittings_Joints
  Description:
  Prototype:
  first_basin: null
  id: null
  status: PROPOSED
  owner: CITY
  constructed: null
  type: null
  dimension: null
  bend: null
  flowline_elevation: null
  antiseep_collar_type: null
  source_accuracy: null
  notes: null
  creator: null
  editor: null
  createdate: null
  editdate: null
  basin: null
  branch: null

  Drawing Tool: esriFeatureEditToolPoint

Capabilities: Query

Sync Can Return Changes: false

Is Data Versioned: false

Supports Rollback On Failure: true

Supports ApplyEdits With Global Ids: true

Supports Query With Historic Moment: false

Supports Coordinates Quantization: true

Supported Operations:   Query   Query Attachments   Query Analytic   Calculate   Validate SQL   Generate Renderer   Return Updates   Iteminfo   Thumbnail   Metadata
