View In:   ArcGIS Online Map Viewer

Name: UTIL_Storm_Flow_Control

Display Field: status

Type: Feature Layer

Geometry Type: esriGeometryPoint

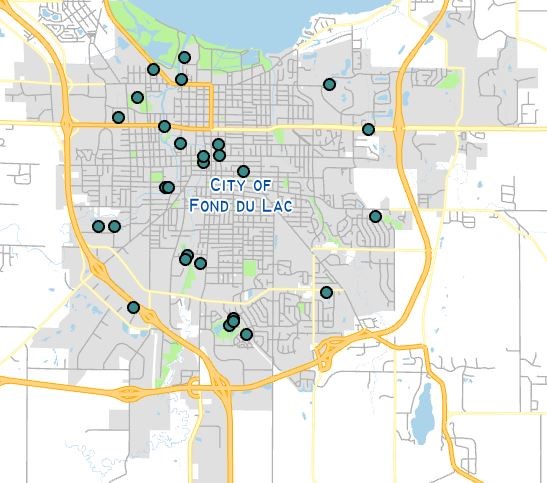

Description: The storm flow control layer depicts all the storm flow control locations within the city of Fond du Lac, Wisconsin. It has information about the status, owner, type, etc. The City Engineering & Traffic Division in the Department of Public Works maintains the data.

Service Item Id: ca9026502531477591fa226feb996a39

Copyright Text:

Default Visibility: false

MaxRecordCount: 2000

Supported Query Formats: JSON, geoJSON, PBF

Min Scale: 0

Max Scale: 0

Supports Advanced Queries: true

Supports Statistics: true

Can Scale Symbols: false

Use Standardized Queries: true

Supports ValidateSQL: true

Supports Calculate: true

Supports Datum Transformation: true

Extent:

XMin: 809683.9928857461
YMin: 374489.7489752397
XMax: 827716.9489457458
YMax: 392576.83419207484
Spatial Reference: 103419  (103419)

Drawing Info:

Renderer:
Simple Renderer:
Symbol:
Style: esriSMSCircle
Color: [77, 153, 71, 255]
Size: 4.0
Angle: 0.0
XOffset: 0
YOffset: 0
Outline:
[0, 0, 0, 255] Width: 0
Label: N/A
Description: N/A
Transparency: 0
Labeling Info:

Advanced Query Capabilities:

Supports Statistics: true
Supports OrderBy: true
Supports Distinct: true
Supports Pagination: true
Supports TrueCurve: true
Supports Returning Query Extent: true
Supports Query With Distance: true
Supports Sql Expression: true
Supports Query With ResultType: true
Supports Returning Geometry Centroid: false
Supports Binning LOD: false
Supports Query With LOD Spatial Reference: false

HasZ: false

HasM: false

Has Attachments: false

HTML Popup Type: esriServerHTMLPopupTypeAsHTMLText

Type ID Field:

Fields:

• objectid ( type: esriFieldTypeOID, alias: OBJECTID, editable: false, nullable: false, defaultValue: null, modelName: OBJECTID )
• status ( type: esriFieldTypeString, alias: Status, editable: true, nullable: true, length: 30, defaultValue: null, modelName: STATUS , Coded Values: [ABANDONED: Abandoned] , [ACTIVE: Active] , [INACTIVE: Inactive] , ...1 more... )
• owner ( type: esriFieldTypeString, alias: Owner, editable: true, nullable: true, length: 30, defaultValue: null, modelName: OWNER , Coded Values: [CITY: City] , [CITY & COUNTY: City & County] , [CITY & TOWN: City & Town] , ...9 more... )
• type ( type: esriFieldTypeString, alias: Type, editable: true, nullable: true, length: 30, defaultValue: null, modelName: TYPE , Coded Values: [BAFFLE PLATE: Baffle Plate] , [BUTTERFLY VALVE: Butterfly Valve] , [DUCKBILL CHECK VALVE: Duckbill Check Valve] , ...12 more... )
• constructed ( type: esriFieldTypeSmallInteger, alias: Constructed, editable: true, nullable: true, defaultValue: null, modelName: YEAR_CONSTRUCTED )
• size ( type: esriFieldTypeString, alias: Size, editable: true, nullable: true, length: 20, defaultValue: null, modelName: SIZE )
• valve_gate_position ( type: esriFieldTypeString, alias: Valve/Gate Position, editable: true, nullable: true, length: 10, defaultValue: null, modelName: VALVE_GATE_POSITION , Coded Values: [CLOSED: Closed] , [OPEN: Open] , [UNKNOWN: Unknown] , ...1 more... )
• model ( type: esriFieldTypeString, alias: Model, editable: true, nullable: true, length: 30, defaultValue: null, modelName: MODEL )
• orifice_size ( type: esriFieldTypeDouble, alias: Orifice Size (in), editable: true, nullable: true, defaultValue: null, modelName: ORIFICE_SIZE )
• weir_length ( type: esriFieldTypeDouble, alias: Weir Length (in), editable: true, nullable: true, defaultValue: null, modelName: WEIR_LENGTH )
• weir_height ( type: esriFieldTypeDouble, alias: Weir Height (in), editable: true, nullable: true, defaultValue: null, modelName: WEIR_HEIGHT )
• weir_structure_size ( type: esriFieldTypeString, alias: Weir Structure Size, editable: true, nullable: true, length: 30, defaultValue: null, modelName: WEIR_STRUCTURE_SIZE )
• weir_elevation ( type: esriFieldTypeDouble, alias: Weir Elevation, editable: true, nullable: true, defaultValue: null, modelName: WEIR_ELEVATION )
• weir_vertical_datum ( type: esriFieldTypeString, alias: Weir Vertical Datum, editable: true, nullable: true, length: 20, defaultValue: null, modelName: WEIR_VERTICAL_DATUM , Coded Values: [NAVD88: NAVD88] , [NGVD29: NGVD29] , [NA: NA] )
• elevation_data_source ( type: esriFieldTypeString, alias: Elevation Data Source, editable: true, nullable: true, length: 20, defaultValue: null, modelName: ELEVATION_DATA_SOURCE , Coded Values: [DIGITIZED: Digitized] , [DOWN: Down (measured)] , [FIELD VERIFIED: Field Verified (visual)] , ...12 more... )
• weir_material ( type: esriFieldTypeString, alias: Weir Material, editable: true, nullable: true, length: 30, defaultValue: null, modelName: WEIR_MATERIAL , Coded Values: [CAST-IN-PLACE CONCRETE: Cast-In-Place Concrete] , [PVC: PVC] , [NA: NA] )
• baffle_plate_material ( type: esriFieldTypeString, alias: Baffle Plate Material, editable: true, nullable: true, length: 20, defaultValue: null, modelName: BAFFLE_PLATE_MATERIAL , Coded Values: [STEEL: Steel] , [OTHER: Other] , [UNKNOWN: Unknown] )
• basin ( type: esriFieldTypeString, alias: Basin, editable: true, nullable: true, length: 20, defaultValue: null, modelName: BASIN )
• notes ( type: esriFieldTypeString, alias: Notes, editable: true, nullable: true, length: 100, defaultValue: null, modelName: NOTES )
• creator ( type: esriFieldTypeString, alias: Creator, editable: true, nullable: true, length: 30, defaultValue: null, modelName: CREATOR )
• editor ( type: esriFieldTypeString, alias: Editor, editable: true, nullable: true, length: 30, defaultValue: null, modelName: EDITOR )
• createdate ( type: esriFieldTypeDate, alias: Created, editable: true, nullable: true, length: 8, defaultValue: null, modelName: CREATEDATE )
• editdate ( type: esriFieldTypeDate, alias: Edited, editable: true, nullable: true, length: 8, defaultValue: null, modelName: EDITDATE )
• source_accuracy ( type: esriFieldTypeString, alias: Source/Accuracy, editable: true, nullable: true, length: 50, defaultValue: null, modelName: DATA_SOURCE , Coded Values: [DIGITIZED: Digitized] , [DOWN: Down (measured)] , [FIELD VERIFIED: Field Verified (visual)] , ...12 more... )
• branch ( type: esriFieldTypeString, alias: Branch, editable: true, nullable: true, length: 2, defaultValue: null, modelName: BRANCH )
• id ( type: esriFieldTypeString, alias: ID, editable: true, nullable: true, length: 30, defaultValue: null, modelName: STRUCTURE_ID )
• first_basin ( type: esriFieldTypeString, alias: First Basin, editable: true, nullable: true, length: 10, defaultValue: null, modelName: FIRST_BASIN )
• globalid ( type: esriFieldTypeGlobalID, alias: globalid, editable: false, nullable: false, length: 38, defaultValue: null, modelName: globalid )

Templates:

• Name: UTIL_Storm_Flow_Control
  Description:
  Prototype:
  first_basin: null
  id: null
  status: null
  owner: null
  type: null
  constructed: null
  size: null
  valve_gate_position: null
  model: null
  orifice_size: null
  weir_length: null
  weir_height: null
  weir_structure_size: null
  weir_elevation: null
  weir_vertical_datum: null
  elevation_data_source: null
  weir_material: null
  baffle_plate_material: null
  basin: null
  notes: null
  creator: null
  editor: null
  createdate: null
  editdate: null
  source_accuracy: null
  branch: null

  Drawing Tool: esriFeatureEditToolPoint

Capabilities: Query

Sync Can Return Changes: false

Is Data Versioned: false

Supports Rollback On Failure: true

Supports ApplyEdits With Global Ids: true

Supports Query With Historic Moment: false

Supports Coordinates Quantization: true

Supported Operations:   Query   Query Attachments   Query Analytic   Calculate   Validate SQL   Generate Renderer   Return Updates   Iteminfo   Thumbnail   Metadata
