View In:   ArcGIS Online Map Viewer

Name: UTIL_Storm_Outlet_Structure

Display Field: status

Type: Feature Layer

Geometry Type: esriGeometryPoint

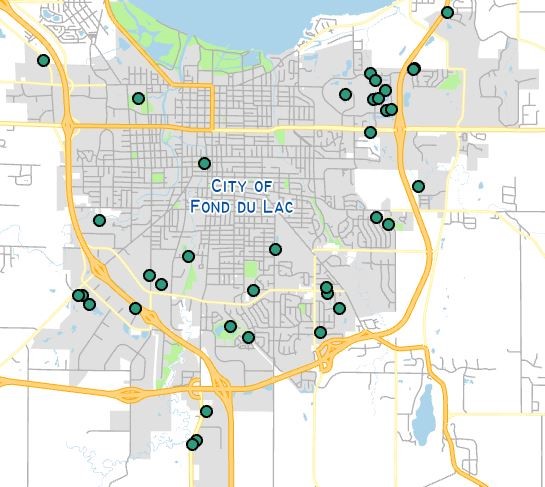

Description: The storm outlet structure layer depicts all the storm outlet structures within the city of Fond du Lac, Wisconsin. It has information about the status, size, material, etc. The City Engineering & Traffic Division in the Department of Public Works maintains the data.

Service Item Id: ca9026502531477591fa226feb996a39

Copyright Text:

Default Visibility: false

MaxRecordCount: 2000

Supported Query Formats: JSON, geoJSON, PBF

Min Scale: 0

Max Scale: 0

Supports Advanced Queries: true

Supports Statistics: true

Can Scale Symbols: false

Use Standardized Queries: true

Supports ValidateSQL: true

Supports Calculate: true

Supports Datum Transformation: true

Extent:

XMin: 806014.6258806624
YMin: 367398.4521342367
XMax: 832309.9499303289
YMax: 395538.77019732445
Spatial Reference: 103419  (103419)

Drawing Info:

Renderer:
Simple Renderer:
Symbol:
Style: esriSMSCircle
Color: [132, 35, 69, 255]
Size: 4.0
Angle: 0.0
XOffset: 0
YOffset: 0
Outline:
[0, 0, 0, 255] Width: 0
Label: N/A
Description: N/A
Transparency: 0
Labeling Info:

Advanced Query Capabilities:

Supports Statistics: true
Supports OrderBy: true
Supports Distinct: true
Supports Pagination: true
Supports TrueCurve: true
Supports Returning Query Extent: true
Supports Query With Distance: true
Supports Sql Expression: true
Supports Query With ResultType: true
Supports Returning Geometry Centroid: false
Supports Binning LOD: false
Supports Query With LOD Spatial Reference: false

HasZ: false

HasM: false

Has Attachments: false

HTML Popup Type: esriServerHTMLPopupTypeAsHTMLText

Type ID Field:

Fields:

• objectid ( type: esriFieldTypeOID, alias: OBJECTID, editable: false, nullable: false, defaultValue: null, modelName: OBJECTID )
• sur_struc_id ( type: esriFieldTypeInteger, alias: Survey Structure ID, editable: true, nullable: true, defaultValue: null, modelName: SUR_STRUC_ID )
• status ( type: esriFieldTypeString, alias: Status, editable: true, nullable: true, length: 20, defaultValue: null, modelName: STATUS , Coded Values: [ABANDONED: Abandoned] , [ACTIVE: Active] , [INACTIVE: Inactive] , ...1 more... )
• diameter ( type: esriFieldTypeString, alias: Diameter (in), editable: true, nullable: true, length: 20, defaultValue: null, modelName: SIZE )
• material ( type: esriFieldTypeString, alias: Material, editable: true, nullable: true, length: 20, defaultValue: null, modelName: MATERIAL , Coded Values: [HDPE: HDPE] , [PVC: PVC] , [BLOCK: Block] , ...11 more... )
• grate_elevation ( type: esriFieldTypeDouble, alias: Grate Elevation, editable: true, nullable: true, defaultValue: null, modelName: GRATE_ELEVATION )
• grate_elev_accuracy ( type: esriFieldTypeString, alias: Grate Elev. Accuracy, editable: true, nullable: true, length: 10, defaultValue: null, modelName: GRATE_ELEV_ACCURACY , Coded Values: [ASBUILT: Asbuilt] , [DOWN: Down] , [PLAN: Plan] , ...1 more... )
• gps_date ( type: esriFieldTypeDate, alias: GPS Date, editable: true, nullable: true, length: 8, defaultValue: null, modelName: GPS_DATE )
• owner ( type: esriFieldTypeString, alias: Owner, editable: true, nullable: true, length: 50, defaultValue: null, modelName: OWNER , Coded Values: [CITY: City] , [CITY & COUNTY: City & County] , [CITY & TOWN: City & Town] , ...9 more... )
• city_drainage ( type: esriFieldTypeString, alias: City Drainage, editable: true, nullable: true, length: 5, defaultValue: null, modelName: CITY_DRAINAGE , Coded Values: [NO: No] , [YES: Yes] )
• length ( type: esriFieldTypeSmallInteger, alias: Length (in), editable: true, nullable: true, defaultValue: null, modelName: HEIGHT )
• width ( type: esriFieldTypeSmallInteger, alias: Width (in), editable: true, nullable: true, defaultValue: null, modelName: WIDTH )
• source_accuracy ( type: esriFieldTypeString, alias: Source/Accuracy, editable: true, nullable: true, length: 20, defaultValue: null, modelName: DATA_SOURCE , Coded Values: [DIGITIZED: Digitized] , [DOWN: Down (measured)] , [FIELD VERIFIED: Field Verified (visual)] , ...12 more... )
• notes ( type: esriFieldTypeString, alias: Notes, editable: true, nullable: true, length: 250, defaultValue: null, modelName: NOTES )
• constructed ( type: esriFieldTypeSmallInteger, alias: Year Constructed, editable: true, nullable: true, defaultValue: null, modelName: YEAR_CONSTRUCTED )
• abandoned ( type: esriFieldTypeSmallInteger, alias: Year Abandoned, editable: true, nullable: true, defaultValue: null, modelName: YEAR_ABANDONED )
• rotation ( type: esriFieldTypeSmallInteger, alias: Rotation, editable: true, nullable: true, defaultValue: null, modelName: ROTATION )
• creator ( type: esriFieldTypeString, alias: Creator, editable: true, nullable: true, length: 50, defaultValue: null, modelName: CREATE_USR )
• editor ( type: esriFieldTypeString, alias: Editor, editable: true, nullable: true, length: 50, defaultValue: null, modelName: LST_EDT_USR )
• createdate ( type: esriFieldTypeDate, alias: Created, editable: true, nullable: true, length: 8, defaultValue: null, modelName: CREATIONDATE )
• editdate ( type: esriFieldTypeDate, alias: Edited, editable: true, nullable: true, length: 8, defaultValue: null, modelName: EDITDATE )
• primary_outlet ( type: esriFieldTypeString, alias: Primary Outlet, editable: true, nullable: true, length: 30, defaultValue: null, modelName: PRIMARY_OUTLET , Coded Values: [ANGLED HORIZONTAL GRATE: Angled Horizontal Grate] , [HORIZONTAL GRATE: Horizontal Grate] , [INLET PIPE: Inlet Pipe] , ...7 more... )
• secondary_outlet ( type: esriFieldTypeString, alias: Secondary Outlet, editable: true, nullable: true, length: 30, defaultValue: null, modelName: SECONDARY_OUTLET , Coded Values: [ANGLED HORIZONTAL GRATE: Angled Horizontal Grate] , [HORIZONTAL GRATE: Horizontal Grate] , [INLET PIPE: Inlet Pipe] , ...7 more... )
• tertiary_outlet ( type: esriFieldTypeString, alias: Tertiary Outlet, editable: true, nullable: true, length: 30, defaultValue: null, modelName: TERTIARY_OUTLET , Coded Values: [ANGLED HORIZONTAL GRATE: Angled Horizontal Grate] , [HORIZONTAL GRATE: Horizontal Grate] , [INLET PIPE: Inlet Pipe] , ...7 more... )
• quartenary_outlet ( type: esriFieldTypeString, alias: Quartenary Outlet, editable: true, nullable: true, length: 30, defaultValue: null, modelName: QUARTENARY_OUTLET , Coded Values: [ANGLED HORIZONTAL GRATE: Angled Horizontal Grate] , [HORIZONTAL GRATE: Horizontal Grate] , [INLET PIPE: Inlet Pipe] , ...7 more... )
• basin ( type: esriFieldTypeString, alias: Basin, editable: true, nullable: true, length: 50, defaultValue: null, modelName: BASIN )
• id ( type: esriFieldTypeString, alias: ID, editable: true, nullable: true, length: 50, defaultValue: null, modelName: ASSETID_NEW )
• branch ( type: esriFieldTypeString, alias: Branch, editable: true, nullable: true, length: 2, defaultValue: null, modelName: BRANCH )
• first_basin ( type: esriFieldTypeString, alias: First Basin, editable: true, nullable: true, length: 10, defaultValue: null, modelName: FIRST_BASIN )
• globalid ( type: esriFieldTypeGlobalID, alias: globalid, editable: false, nullable: false, length: 38, defaultValue: null, modelName: globalid )

Templates:

• Name: UTIL_Storm_Outlet_Structure
  Description:
  Prototype:
  first_basin: null
  branch: null
  sur_struc_id: null
  status: null
  diameter: null
  material: null
  grate_elevation: null
  grate_elev_accuracy: null
  gps_date: null
  owner: null
  city_drainage: null
  length: null
  width: null
  source_accuracy: null
  notes: null
  constructed: null
  abandoned: null
  rotation: null
  creator: null
  editor: null
  createdate: null
  editdate: null
  primary_outlet: null
  secondary_outlet: null
  tertiary_outlet: null
  quartenary_outlet: null
  basin: null
  id: null

  Drawing Tool: esriFeatureEditToolPoint

Capabilities: Query

Sync Can Return Changes: false

Is Data Versioned: false

Supports Rollback On Failure: true

Supports ApplyEdits With Global Ids: true

Supports Query With Historic Moment: false

Supports Coordinates Quantization: true

Supported Operations:   Query   Query Attachments   Query Analytic   Calculate   Validate SQL   Generate Renderer   Return Updates   Iteminfo   Thumbnail   Metadata
