Name: UTIL_Storm_Swale

Display Field: ci_tre_cre

Type: Feature Layer

Geometry Type: esriGeometryPolyline

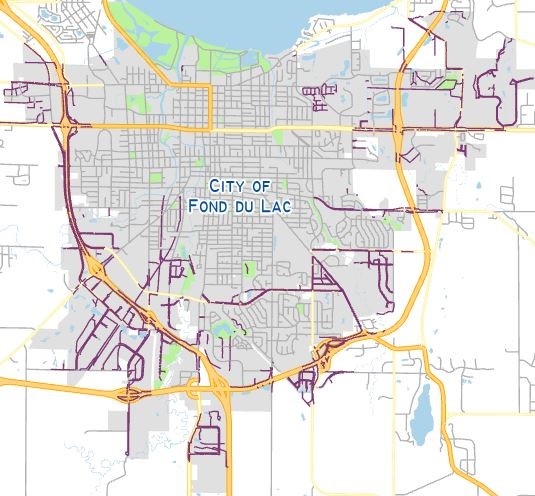

Description: The storm swale layer depicts all the storm swales within the city of Fond du Lac, Wisconsin. It has information about the surface type, construction year, owner, status, etc. The City Engineering & Traffic Division in the Department of Public Works maintains the data.

Service Item Id: 4d5fb52104884682bf100fa610f98cea

Copyright Text:

Default Visibility: false

MaxRecordCount: 2000

Supported Query Formats: JSON, geoJSON, PBF

Min Scale: 0

Max Scale: 0

Supports Advanced Queries: true

Supports Statistics: true

Has Labels: false

Can Modify Layer: true

Can Scale Symbols: false

Use Standardized Queries: true

Supports Datum Transformation: true

Extent:

XMin: 803117.388892997
YMin: 365458.7404624894
XMax: 838020.9004506618
YMax: 395618.91242548823
Spatial Reference: 103419  (103419)

Drawing Info:

Renderer:
Simple Renderer:
Symbol:
Style: esriSLSSolid
Color: [52, 99, 175, 255]
Width: 1
Label: N/A
Description: N/A
Transparency: 0
Labeling Info:

Advanced Query Capabilities:

Supports Statistics: true
Supports OrderBy: true
Supports Distinct: true
Supports Pagination: true
Supports TrueCurve: true
Supports Returning Query Extent: true
Supports Query With Distance: true
Supports Sql Expression: true
Supports Query With ResultType: false
Supports Returning Geometry Centroid: false
Supports Binning LOD: false
Supports Query With LOD Spatial Reference: false

HasZ: false

HasM: false

Has Attachments: false

HTML Popup Type: esriServerHTMLPopupTypeAsHTMLText

Type ID Field: null

Fields:

• objectid ( type: esriFieldTypeOID, alias: OBJECTID )
• ci_tre_cre ( type: esriFieldTypeString, alias: City Treatment Credit, length: 254 , Coded Values: [NO: No] , [YES: Yes] )
• year ( type: esriFieldTypeDouble, alias: Year )
• ms4_con ( type: esriFieldTypeString, alias: MS4 Conveyance, length: 254 , Coded Values: [NO: No] , [YES: Yes] )
• notes ( type: esriFieldTypeString, alias: Notes, length: 254 )
• owner ( type: esriFieldTypeString, alias: Owner, length: 254 , Coded Values: [CITY: City] , [CITY & COUNTY: City & County] , [CITY & TOWN: City & Town] , ...9 more... )
• material ( type: esriFieldTypeString, alias: Surface Type, length: 254 , Coded Values: [ASPHALT: Asphalt] , [CONCRETE: Concrete] , [RIPRAP: Riprap] , ...1 more... )
• tre_swale ( type: esriFieldTypeString, alias: Treatment Swale, length: 254 , Coded Values: [NO: No] , [YES: Yes] )
• creator ( type: esriFieldTypeString, alias: Creator, length: 50 )
• editor ( type: esriFieldTypeString, alias: Editor, length: 50 )
• work_date ( type: esriFieldTypeDate, alias: Field Work Date, length: 8 )
• status ( type: esriFieldTypeString, alias: Status, length: 30 , Coded Values: [ABANDONED: Abandoned] , [ACTIVE: Active] , [INACTIVE: Inactive] , ...1 more... )
• createdate ( type: esriFieldTypeDate, alias: Created On (UTC), length: 8 )
• editdate ( type: esriFieldTypeDate, alias: Edited On (UTC), length: 8 )
• swale_shape ( type: esriFieldTypeString, alias: Shape, length: 30 , Coded Values: [CHANNEL - PARABOLIC: Channel - Parabolic] , [CHANNEL - RECTANGULAR: Channel - Rectangular] , [CHANNEL - TRAPEZOIDAL: Channel - Trapezoidal] , ...6 more... )
• height ( type: esriFieldTypeSmallInteger, alias: Height (in) )
• width ( type: esriFieldTypeSmallInteger, alias: Width (in) )
• asset_id ( type: esriFieldTypeSmallInteger, alias: Asset ID )
• basin ( type: esriFieldTypeString, alias: Basin, length: 50 )
• bottom_width ( type: esriFieldTypeSmallInteger, alias: Bottom Width (in) )
• side_slopes ( type: esriFieldTypeString, alias: Side Slopes, length: 50 )
• source_accuracy ( type: esriFieldTypeString, alias: Source/Accuracy, length: 30 , Coded Values: [DIGITIZED: Digitized] , [DOWN: Down (measured)] , [FIELD VERIFIED: Field Verified (visual)] , ...12 more... )
• globalid ( type: esriFieldTypeGlobalID, alias: globalid, length: 38 )
• shape ( type: esriFieldTypeGeometry, alias: Shape )
• st_length(shape) ( type: esriFieldTypeDouble, alias: st_length(shape) )

Supported Operations:   Query   Query Attachments   Query Analytic   Generate Renderer   Return Updates

  Iteminfo   Thumbnail   Metadata
