Name: UTIL_Storm_Flow_Control

Display Field: status

Type: Feature Layer

Geometry Type: esriGeometryPoint

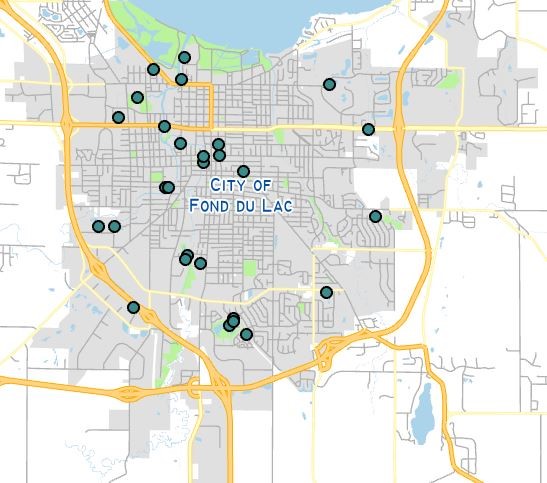

Description: The storm flow control layer depicts all the storm flow control locations within the city of Fond du Lac, Wisconsin. It has information about the status, owner, type, etc. The City Engineering & Traffic Division in the Department of Public Works maintains the data.

Service Item Id: 4d5fb52104884682bf100fa610f98cea

Copyright Text:

Default Visibility: false

MaxRecordCount: 2000

Supported Query Formats: JSON, geoJSON, PBF

Min Scale: 0

Max Scale: 0

Supports Advanced Queries: true

Supports Statistics: true

Has Labels: false

Can Modify Layer: true

Can Scale Symbols: false

Use Standardized Queries: true

Supports Datum Transformation: true

Extent:

XMin: 809683.9928857461
YMin: 374489.7489752397
XMax: 827716.9489457458
YMax: 392576.83419207484
Spatial Reference: 103419  (103419)

Drawing Info:

Renderer:
Simple Renderer:
Symbol:
Style: esriSMSCircle
Color: [77, 153, 71, 255]
Size: 4.0
Angle: 0.0
XOffset: 0
YOffset: 0
Outline:
[0, 0, 0, 255] Width: 0
Label: N/A
Description: N/A
Transparency: 0
Labeling Info:

Advanced Query Capabilities:

Supports Statistics: true
Supports OrderBy: true
Supports Distinct: true
Supports Pagination: true
Supports TrueCurve: true
Supports Returning Query Extent: true
Supports Query With Distance: true
Supports Sql Expression: true
Supports Query With ResultType: false
Supports Returning Geometry Centroid: false
Supports Binning LOD: false
Supports Query With LOD Spatial Reference: false

HasZ: false

HasM: false

Has Attachments: false

HTML Popup Type: esriServerHTMLPopupTypeAsHTMLText

Type ID Field: null

Fields:

• objectid ( type: esriFieldTypeOID, alias: OBJECTID )
• status ( type: esriFieldTypeString, alias: Status, length: 30 , Coded Values: [ABANDONED: Abandoned] , [ACTIVE: Active] , [INACTIVE: Inactive] , ...1 more... )
• owner ( type: esriFieldTypeString, alias: Owner, length: 30 , Coded Values: [CITY: City] , [CITY & COUNTY: City & County] , [CITY & TOWN: City & Town] , ...9 more... )
• type ( type: esriFieldTypeString, alias: Type, length: 30 , Coded Values: [BAFFLE PLATE: Baffle Plate] , [BUTTERFLY VALVE: Butterfly Valve] , [DUCKBILL CHECK VALVE: Duckbill Check Valve] , ...12 more... )
• constructed ( type: esriFieldTypeSmallInteger, alias: Constructed )
• size ( type: esriFieldTypeString, alias: Size, length: 20 )
• valve_gate_position ( type: esriFieldTypeString, alias: Valve/Gate Position, length: 10 , Coded Values: [CLOSED: Closed] , [OPEN: Open] , [UNKNOWN: Unknown] , ...1 more... )
• model ( type: esriFieldTypeString, alias: Model, length: 30 )
• orifice_size ( type: esriFieldTypeDouble, alias: Orifice Size (in) )
• weir_length ( type: esriFieldTypeDouble, alias: Weir Length (in) )
• weir_height ( type: esriFieldTypeDouble, alias: Weir Height (in) )
• weir_structure_size ( type: esriFieldTypeString, alias: Weir Structure Size, length: 30 )
• weir_elevation ( type: esriFieldTypeDouble, alias: Weir Elevation )
• weir_vertical_datum ( type: esriFieldTypeString, alias: Weir Vertical Datum, length: 20 , Coded Values: [NAVD88: NAVD88] , [NGVD29: NGVD29] , [NA: NA] )
• elevation_data_source ( type: esriFieldTypeString, alias: Elevation Data Source, length: 20 , Coded Values: [DIGITIZED: Digitized] , [DOWN: Down (measured)] , [FIELD VERIFIED: Field Verified (visual)] , ...12 more... )
• weir_material ( type: esriFieldTypeString, alias: Weir Material, length: 30 , Coded Values: [CAST-IN-PLACE CONCRETE: Cast-In-Place Concrete] , [PVC: PVC] , [NA: NA] )
• baffle_plate_material ( type: esriFieldTypeString, alias: Baffle Plate Material, length: 20 , Coded Values: [STEEL: Steel] , [OTHER: Other] , [UNKNOWN: Unknown] )
• basin ( type: esriFieldTypeString, alias: Basin, length: 20 )
• notes ( type: esriFieldTypeString, alias: Notes, length: 100 )
• creator ( type: esriFieldTypeString, alias: Creator, length: 30 )
• editor ( type: esriFieldTypeString, alias: Editor, length: 30 )
• createdate ( type: esriFieldTypeDate, alias: Created, length: 8 )
• editdate ( type: esriFieldTypeDate, alias: Edited, length: 8 )
• source_accuracy ( type: esriFieldTypeString, alias: Source/Accuracy, length: 50 , Coded Values: [DIGITIZED: Digitized] , [DOWN: Down (measured)] , [FIELD VERIFIED: Field Verified (visual)] , ...12 more... )
• branch ( type: esriFieldTypeString, alias: Branch, length: 2 )
• id ( type: esriFieldTypeString, alias: ID, length: 30 )
• first_basin ( type: esriFieldTypeString, alias: First Basin, length: 10 )
• globalid ( type: esriFieldTypeGlobalID, alias: globalid, length: 38 )
• shape ( type: esriFieldTypeGeometry, alias: SHAPE )

Supported Operations:   Query   Query Attachments   Query Analytic   Generate Renderer   Return Updates
