View In:   ArcGIS Online Map Viewer

Name: UTIL_Water_Main

Display Field: type

Type: Feature Layer

Geometry Type: esriGeometryPolyline

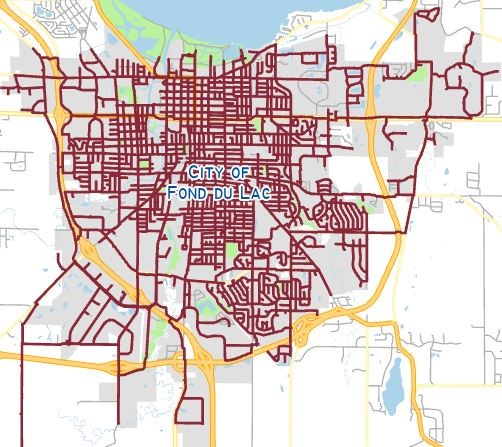

Description: The water main layer depicts all the water mains within the city of Fond du Lac, Wisconsin. It has information about the size, type, ID, etc. The City Engineering & Traffic Division in the Department of Public Works maintains the data.

Service Item Id: 00d1518ab5d24edf949f1b70a20d600c

Copyright Text:

Default Visibility: false

MaxRecordCount: 2000

Supported Query Formats: JSON, geoJSON, PBF

Min Scale: 0

Max Scale: 0

Supports Advanced Queries: true

Supports Statistics: true

Can Scale Symbols: false

Use Standardized Queries: true

Supports ValidateSQL: true

Supports Calculate: true

Supports Datum Transformation: true

Extent:

XMin: 803580.5815361692
YMin: 357732.88485126186
XMax: 838018.575980255
YMax: 395591.2927300934
Spatial Reference: PROJCS["NAD_1983_HARN_WISCRS_Fond_du_Lac_County_Feet",GEOGCS["GCS_North_American_1983_HARN",DATUM["D_North_American_1983_HARN",SPHEROID["GRS_1980",6378137.0,298.257222101]],PRIMEM["Greenwich",0.0],UNIT["Degree",0.0174532925199433]],PROJECTION["Transverse_Mercator"],PARAMETER["False_Easting",802999.999],PARAMETER["False_Northing",0.016],PARAMETER["Central_Meridian",-88.5],PARAMETER["Scale_Factor",1.0000286569],PARAMETER["Latitude_Of_Origin",42.71944444444445],UNIT["Foot_US",0.3048006096012192]],VERTCS["NAVD_1988",VDATUM["North_American_Vertical_Datum_1988"],PARAMETER["Vertical_Shift",0.0],PARAMETER["Direction",1.0],UNIT["Foot_US",0.3048006096012192]]

Drawing Info:

Renderer:
Simple Renderer:
Symbol:
Style: esriSLSSolid
Color: [137, 53, 34, 255]
Width: 1
Label: N/A
Description: N/A
Transparency: 0
Labeling Info:

Advanced Query Capabilities:

Supports Statistics: true
Supports OrderBy: true
Supports Distinct: true
Supports Pagination: true
Supports TrueCurve: true
Supports Returning Query Extent: true
Supports Query With Distance: true
Supports Sql Expression: true
Supports Query With ResultType: true
Supports Returning Geometry Centroid: false
Supports Binning LOD: false
Supports Query With LOD Spatial Reference: false

HasZ: false

HasM: false

Has Attachments: false

HTML Popup Type: esriServerHTMLPopupTypeAsHTMLText

Type ID Field:

Fields:

• objectid ( type: esriFieldTypeOID, alias: OBJECTID, editable: false, nullable: false, defaultValue: null, modelName: OBJECTID )
• locno ( type: esriFieldTypeInteger, alias: Location Number, editable: true, nullable: true, defaultValue: null, modelName: LOCNO )
• type ( type: esriFieldTypeString, alias: Water Main Type, editable: true, nullable: true, length: 30, defaultValue: null, modelName: TYPE )
• material ( type: esriFieldTypeString, alias: Material, editable: true, nullable: true, length: 30, defaultValue: null, modelName: MATERIAL )
• size ( type: esriFieldTypeDouble, alias: Main Size, editable: true, nullable: true, defaultValue: null, modelName: SIZE )
• class ( type: esriFieldTypeString, alias: Class, editable: true, nullable: true, length: 10, defaultValue: null, modelName: CLASS )
• poly_wrapped ( type: esriFieldTypeString, alias: Poly Wrapped, editable: true, nullable: true, length: 5, defaultValue: null, modelName: POLY_WRAPPED )
• cathodic_protection ( type: esriFieldTypeString, alias: Cathodic Protection, editable: true, nullable: true, length: 5, defaultValue: null, modelName: CATHODIC_PROTECTION )
• casing ( type: esriFieldTypeString, alias: Casing, editable: true, nullable: true, length: 5, defaultValue: null, modelName: CASING )
• material_notes ( type: esriFieldTypeString, alias: Material Notes, editable: true, nullable: true, length: 20, defaultValue: null, modelName: MATERIAL_NOTES )
• installdt ( type: esriFieldTypeDate, alias: Install Date, editable: true, nullable: true, length: 8, defaultValue: null, modelName: INSTALLDT )
• zone ( type: esriFieldTypeString, alias: Zone, editable: true, nullable: true, length: 42, defaultValue: null, modelName: ZONE )
• creator ( type: esriFieldTypeString, alias: Creator, editable: true, nullable: true, length: 50, defaultValue: null, modelName: CREATE_USR )
• editor ( type: esriFieldTypeString, alias: Editor, editable: true, nullable: true, length: 50, defaultValue: null, modelName: LST_EDT_USR )
• notes ( type: esriFieldTypeString, alias: Notes, editable: true, nullable: true, length: 150, defaultValue: null, modelName: NOTES )
• enabled ( type: esriFieldTypeSmallInteger, alias: Enabled, editable: true, nullable: true, defaultValue: 1, modelName: Enabled )
• layer ( type: esriFieldTypeString, alias: Layer, editable: true, nullable: true, length: 50, defaultValue: null, modelName: LAYER )
• created ( type: esriFieldTypeDate, alias: Created, editable: true, nullable: true, length: 8, defaultValue: null, modelName: CREATIONDATE )
• edited ( type: esriFieldTypeDate, alias: Edited, editable: true, nullable: true, length: 8, defaultValue: null, modelName: EDITDATE )
• globalid ( type: esriFieldTypeGlobalID, alias: globalid, editable: false, nullable: false, length: 38, defaultValue: null, modelName: globalid )
• Shape__Length ( type: esriFieldTypeDouble, alias: st_length(shape), editable: false, nullable: false, defaultValue: null, modelName: st_length(shape) )

Templates:

• Name: UTIL_Water_Main
  Description:
  Prototype:
  Drawing Tool: esriFeatureEditToolLine

Capabilities: Query

Sync Can Return Changes: false

Is Data Versioned: false

Supports Rollback On Failure: true

Supports ApplyEdits With Global Ids: true

Supports Query With Historic Moment: false

Supports Coordinates Quantization: true

Supported Operations:   Query   Query Attachments   Query Analytic   Calculate   Validate SQL   Generate Renderer   Return Updates   Iteminfo   Thumbnail   Metadata
