View In:   ArcGIS Online Map Viewer

Name: UTIL_Water_Main_Valve

Display Field: strname

Type: Feature Layer

Geometry Type: esriGeometryPoint

Description:

Service Item Id: 00d1518ab5d24edf949f1b70a20d600c

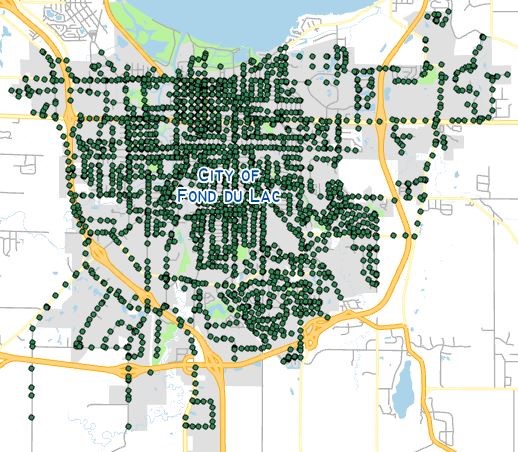

Copyright Text: The water main valve layer depicts all the water main valves within the city of Fond du Lac, Wisconsin. It has information about the ID, type, location, etc. The City Engineering & Traffic Division in the Department of Public Works maintains the data.

Default Visibility: false

MaxRecordCount: 2000

Supported Query Formats: JSON, geoJSON, PBF

Min Scale: 0

Max Scale: 0

Supports Advanced Queries: true

Supports Statistics: true

Can Scale Symbols: false

Use Standardized Queries: true

Supports ValidateSQL: true

Supports Calculate: true

Supports Datum Transformation: true

Extent:

XMin: 803592.575606669
YMin: 357732.8848512619
XMax: 837999.1206385883
YMax: 395591.2864965135
Spatial Reference: PROJCS["NAD_1983_HARN_WISCRS_Fond_du_Lac_County_Feet",GEOGCS["GCS_North_American_1983_HARN",DATUM["D_North_American_1983_HARN",SPHEROID["GRS_1980",6378137.0,298.257222101]],PRIMEM["Greenwich",0.0],UNIT["Degree",0.0174532925199433]],PROJECTION["Transverse_Mercator"],PARAMETER["False_Easting",802999.999],PARAMETER["False_Northing",0.016],PARAMETER["Central_Meridian",-88.5],PARAMETER["Scale_Factor",1.0000286569],PARAMETER["Latitude_Of_Origin",42.71944444444445],UNIT["Foot_US",0.3048006096012192]],VERTCS["NAVD_1988",VDATUM["North_American_Vertical_Datum_1988"],PARAMETER["Vertical_Shift",0.0],PARAMETER["Direction",1.0],UNIT["Foot_US",0.3048006096012192]]

Drawing Info:

Renderer:
Simple Renderer:
Symbol:
Style: esriSMSCircle
Color: [119, 147, 51, 255]
Size: 4.0
Angle: 0.0
XOffset: 0
YOffset: 0
Outline:
[0, 0, 0, 255] Width: 0
Label: N/A
Description: N/A
Transparency: 0
Labeling Info:

Advanced Query Capabilities:

Supports Statistics: true
Supports OrderBy: true
Supports Distinct: true
Supports Pagination: true
Supports TrueCurve: true
Supports Returning Query Extent: true
Supports Query With Distance: true
Supports Sql Expression: true
Supports Query With ResultType: true
Supports Returning Geometry Centroid: false
Supports Binning LOD: false
Supports Query With LOD Spatial Reference: false

HasZ: false

HasM: false

Has Attachments: false

HTML Popup Type: esriServerHTMLPopupTypeAsHTMLText

Type ID Field:

Fields:

• objectid ( type: esriFieldTypeOID, alias: OBJECTID, editable: false, nullable: false, defaultValue: null, modelName: OBJECTID )
• sur_struc_id ( type: esriFieldTypeInteger, alias: Survey Structure ID, editable: true, nullable: true, defaultValue: null, modelName: SUR_STRUC_ID )
• locdate ( type: esriFieldTypeDate, alias: Location Date, editable: true, nullable: true, length: 8, defaultValue: null, modelName: LOCDATE )
• accuracy ( type: esriFieldTypeString, alias: Accuracy, editable: true, nullable: true, length: 12, defaultValue: null, modelName: ACCURACY )
• locno ( type: esriFieldTypeInteger, alias: Location Number, editable: true, nullable: true, defaultValue: null, modelName: LOCNO )
• type ( type: esriFieldTypeString, alias: Type, editable: true, nullable: true, length: 30, defaultValue: null, modelName: TYPE )
• positioncd ( type: esriFieldTypeString, alias: Position, editable: true, nullable: true, length: 6, defaultValue: null, modelName: POSITIONCD )
• strdir ( type: esriFieldTypeString, alias: Street Direction, editable: true, nullable: true, length: 1, defaultValue: null, modelName: STRDIR )
• strname ( type: esriFieldTypeString, alias: Street Name, editable: true, nullable: true, length: 15, defaultValue: null, modelName: STRNAME )
• strseq ( type: esriFieldTypeSmallInteger, alias: Street Sequence, editable: true, nullable: true, defaultValue: null, modelName: STRSEQ )
• valvesize ( type: esriFieldTypeDouble, alias: Valve Size, editable: true, nullable: true, defaultValue: null, modelName: VALVESIZE )
• numofturns ( type: esriFieldTypeSmallInteger, alias: Number of Turns, editable: true, nullable: true, defaultValue: null, modelName: NUMOFTURNS )
• opensto ( type: esriFieldTypeString, alias: Opens To, editable: true, nullable: true, length: 5, defaultValue: null, modelName: OPENSTO )
• mfgcode ( type: esriFieldTypeString, alias: Manufacture Code, editable: true, nullable: true, length: 4, defaultValue: null, modelName: MFGCODE )
• mdlcode ( type: esriFieldTypeString, alias: Model Code, editable: true, nullable: true, length: 4, defaultValue: null, modelName: MDLCODE )
• installdt ( type: esriFieldTypeDate, alias: Install Date, editable: true, nullable: true, length: 8, defaultValue: null, modelName: INSTALLDT )
• installby ( type: esriFieldTypeString, alias: Installed By, editable: true, nullable: true, length: 20, defaultValue: null, modelName: INSTALLBY )
• zone_ ( type: esriFieldTypeString, alias: Zone, editable: true, nullable: true, length: 42, defaultValue: null, modelName: ZONE )
• locdesc ( type: esriFieldTypeString, alias: Location Description, editable: true, nullable: true, length: 1073741822, defaultValue: null, modelName: LOCDESC )
• notes ( type: esriFieldTypeString, alias: Notes, editable: true, nullable: true, length: 150, defaultValue: null, modelName: NOTES )
• symbolfield ( type: esriFieldTypeString, alias: Symbol Field, editable: true, nullable: true, length: 50, defaultValue: null, modelName: SYMBOLFIELD )
• creator ( type: esriFieldTypeString, alias: Creator, editable: true, nullable: true, length: 50, defaultValue: null, modelName: CREATE_USER )
• created ( type: esriFieldTypeDate, alias: Created, editable: true, nullable: true, length: 8, defaultValue: null, modelName: CREATIONDATE )
• editor ( type: esriFieldTypeString, alias: Editor, editable: true, nullable: true, length: 50, defaultValue: null, modelName: LST_EDT_USR )
• edited ( type: esriFieldTypeDate, alias: Edited, editable: true, nullable: true, length: 8, defaultValue: null, modelName: EDITDATE )
• enabled ( type: esriFieldTypeSmallInteger, alias: Enabled, editable: true, nullable: true, defaultValue: 1, modelName: Enabled )
• imgid ( type: esriFieldTypeString, alias: Image ID, editable: true, nullable: true, length: 100, defaultValue: null, modelName: IMGID )
• locno_str ( type: esriFieldTypeString, alias: Location Number (STR), editable: true, nullable: true, length: 50, defaultValue: null, modelName: LOCNO_STR )
• globalid ( type: esriFieldTypeGlobalID, alias: globalid, editable: false, nullable: false, length: 38, defaultValue: null, modelName: globalid )

Templates:

• Name: UTIL_Water_Main_Valve
  Description:
  Prototype:
  Drawing Tool: esriFeatureEditToolPoint

Capabilities: Query

Sync Can Return Changes: false

Is Data Versioned: false

Supports Rollback On Failure: true

Supports ApplyEdits With Global Ids: true

Supports Query With Historic Moment: false

Supports Coordinates Quantization: true

Supported Operations:   Query   Query Attachments   Query Analytic   Calculate   Validate SQL   Generate Renderer   Return Updates   Iteminfo   Thumbnail   Metadata
