View In:   ArcGIS Online Map Viewer

Name: UTIL_Water_Service_Lateral

Display Field: type

Type: Feature Layer

Geometry Type: esriGeometryPolyline

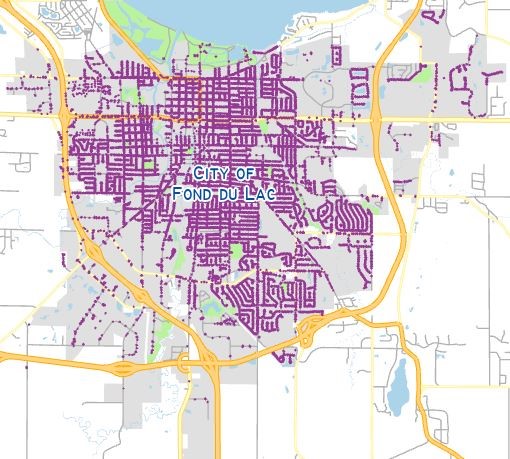

Description: The water service lateral layer depicts all the water service laterals within the city of Fond du Lac, Wisconsin. It has information about the type, material, size, etc. The City Engineering & Traffic Division in the Department of Public Works maintains the data.

Service Item Id: 00d1518ab5d24edf949f1b70a20d600c

Copyright Text:

Default Visibility: false

MaxRecordCount: 2000

Supported Query Formats: JSON, geoJSON, PBF

Min Scale: 0

Max Scale: 0

Supports Advanced Queries: true

Supports Statistics: true

Can Scale Symbols: false

Use Standardized Queries: true

Supports ValidateSQL: true

Supports Calculate: true

Supports Datum Transformation: true

Extent:

XMin: 803649.9872372509
YMin: 368323.1464790909
XMax: 837977.4759968374
YMax: 395526.8975176724
Spatial Reference: PROJCS["NAD_1983_HARN_WISCRS_Fond_du_Lac_County_Feet",GEOGCS["GCS_North_American_1983_HARN",DATUM["D_North_American_1983_HARN",SPHEROID["GRS_1980",6378137.0,298.257222101]],PRIMEM["Greenwich",0.0],UNIT["Degree",0.0174532925199433]],PROJECTION["Transverse_Mercator"],PARAMETER["False_Easting",802999.999],PARAMETER["False_Northing",0.016],PARAMETER["Central_Meridian",-88.5],PARAMETER["Scale_Factor",1.0000286569],PARAMETER["Latitude_Of_Origin",42.71944444444445],UNIT["Foot_US",0.3048006096012192]],VERTCS["NAVD_1988",VDATUM["North_American_Vertical_Datum_1988"],PARAMETER["Vertical_Shift",0.0],PARAMETER["Direction",1.0],UNIT["Foot_US",0.3048006096012192]]

Drawing Info:

Renderer:
Simple Renderer:
Symbol:
Style: esriSLSSolid
Color: [47, 44, 127, 255]
Width: 1
Label: N/A
Description: N/A
Transparency: 0
Labeling Info:

Advanced Query Capabilities:

Supports Statistics: true
Supports OrderBy: true
Supports Distinct: true
Supports Pagination: true
Supports TrueCurve: true
Supports Returning Query Extent: true
Supports Query With Distance: true
Supports Sql Expression: true
Supports Query With ResultType: true
Supports Returning Geometry Centroid: false
Supports Binning LOD: false
Supports Query With LOD Spatial Reference: false

HasZ: false

HasM: false

Has Attachments: false

HTML Popup Type: esriServerHTMLPopupTypeAsHTMLText

Type ID Field:

Fields:

• objectid ( type: esriFieldTypeOID, alias: OBJECTID, editable: false, nullable: false, defaultValue: null, modelName: OBJECTID )
• locno ( type: esriFieldTypeInteger, alias: Location Number, editable: true, nullable: true, defaultValue: null, modelName: LOCNO )
• type ( type: esriFieldTypeString, alias: Service Lateral Type, editable: true, nullable: true, length: 50, defaultValue: null, modelName: TYPE )
• material ( type: esriFieldTypeString, alias: Material, editable: true, nullable: true, length: 30, defaultValue: null, modelName: MATERIAL )
• size ( type: esriFieldTypeDouble, alias: Service Size, editable: true, nullable: true, defaultValue: null, modelName: SIZE )
• installdt ( type: esriFieldTypeDate, alias: Install Date, editable: true, nullable: true, length: 8, defaultValue: null, modelName: INSTALLDT )
• zone ( type: esriFieldTypeString, alias: Zone, editable: true, nullable: true, length: 42, defaultValue: null, modelName: ZONE )
• creator ( type: esriFieldTypeString, alias: Creator, editable: true, nullable: true, length: 50, defaultValue: null, modelName: CREATE_USR )
• editor ( type: esriFieldTypeString, alias: Editor, editable: true, nullable: true, length: 50, defaultValue: null, modelName: LST_EDT_USR )
• notes ( type: esriFieldTypeString, alias: Notes, editable: true, nullable: true, length: 150, defaultValue: null, modelName: NOTES )
• enabled ( type: esriFieldTypeSmallInteger, alias: Enabled, editable: true, nullable: true, defaultValue: 1, modelName: Enabled )
• layer ( type: esriFieldTypeString, alias: Layer, editable: true, nullable: true, length: 50, defaultValue: null, modelName: LAYER )
• created ( type: esriFieldTypeDate, alias: Created, editable: true, nullable: true, length: 8, defaultValue: null, modelName: CREATIONDATE )
• edited ( type: esriFieldTypeDate, alias: Edited, editable: true, nullable: true, length: 8, defaultValue: null, modelName: EDITDATE )
• pipelen ( type: esriFieldTypeString, alias: Pipe Length, editable: true, nullable: true, length: 6, defaultValue: null, modelName: PIPELEN )
• taillength ( type: esriFieldTypeDouble, alias: Tail Length (FT), editable: true, nullable: true, defaultValue: null, modelName: TAILLENGTH )
• globalid ( type: esriFieldTypeGlobalID, alias: globalid, editable: false, nullable: false, length: 38, defaultValue: null, modelName: globalid )
• Shape__Length ( type: esriFieldTypeDouble, alias: st_length(shape), editable: false, nullable: false, defaultValue: null, modelName: st_length(shape) )

Templates:

• Name: UTIL_Water_Service_Lateral
  Description:
  Prototype:
  Drawing Tool: esriFeatureEditToolLine

Capabilities: Query

Sync Can Return Changes: false

Is Data Versioned: false

Supports Rollback On Failure: true

Supports ApplyEdits With Global Ids: true

Supports Query With Historic Moment: false

Supports Coordinates Quantization: true

Supported Operations:   Query   Query Attachments   Query Analytic   Calculate   Validate SQL   Generate Renderer   Return Updates   Iteminfo   Thumbnail   Metadata
