Name: UTIL_Water_Main

Display Field: type

Type: Feature Layer

Geometry Type: esriGeometryPolyline

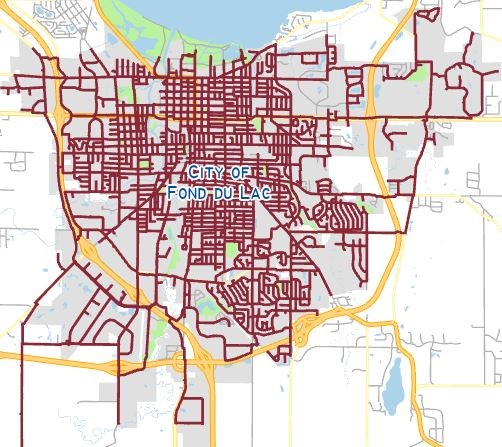

Description: The water main layer depicts all the water mains within the city of Fond du Lac, Wisconsin. It has information about the size, type, ID, etc. The City Engineering & Traffic Division in the Department of Public Works maintains the data.

Service Item Id: 314bef4f714b49ef8f795fc5f67c45cf

Copyright Text:

Default Visibility: false

MaxRecordCount: 2000

Supported Query Formats: JSON, geoJSON, PBF

Min Scale: 0

Max Scale: 0

Supports Advanced Queries: true

Supports Statistics: true

Has Labels: false

Can Modify Layer: true

Can Scale Symbols: false

Use Standardized Queries: true

Supports Datum Transformation: true

Extent:

XMin: 803580.5815361692
YMin: 357732.88485126186
XMax: 838018.575980255
YMax: 395591.2927300934
Spatial Reference: PROJCS["NAD_1983_HARN_WISCRS_Fond_du_Lac_County_Feet",GEOGCS["GCS_North_American_1983_HARN",DATUM["D_North_American_1983_HARN",SPHEROID["GRS_1980",6378137.0,298.257222101]],PRIMEM["Greenwich",0.0],UNIT["Degree",0.0174532925199433]],PROJECTION["Transverse_Mercator"],PARAMETER["False_Easting",802999.999],PARAMETER["False_Northing",0.016],PARAMETER["Central_Meridian",-88.5],PARAMETER["Scale_Factor",1.0000286569],PARAMETER["Latitude_Of_Origin",42.71944444444445],UNIT["Foot_US",0.3048006096012192]],VERTCS["NAVD_1988",VDATUM["North_American_Vertical_Datum_1988"],PARAMETER["Vertical_Shift",0.0],PARAMETER["Direction",1.0],UNIT["Foot_US",0.3048006096012192]]

Drawing Info:

Renderer:
Simple Renderer:
Symbol:
Style: esriSLSSolid
Color: [137, 53, 34, 255]
Width: 1
Label: N/A
Description: N/A
Transparency: 0
Labeling Info:

Advanced Query Capabilities:

Supports Statistics: true
Supports OrderBy: true
Supports Distinct: true
Supports Pagination: true
Supports TrueCurve: true
Supports Returning Query Extent: true
Supports Query With Distance: true
Supports Sql Expression: true
Supports Query With ResultType: false
Supports Returning Geometry Centroid: false
Supports Binning LOD: false
Supports Query With LOD Spatial Reference: false

HasZ: false

HasM: false

Has Attachments: false

HTML Popup Type: esriServerHTMLPopupTypeAsHTMLText

Type ID Field: null

Fields:

• objectid ( type: esriFieldTypeOID, alias: OBJECTID )
• locno ( type: esriFieldTypeInteger, alias: Location Number )
• type ( type: esriFieldTypeString, alias: Water Main Type, length: 30 )
• material ( type: esriFieldTypeString, alias: Material, length: 30 )
• size ( type: esriFieldTypeDouble, alias: Main Size )
• class ( type: esriFieldTypeString, alias: Class, length: 10 )
• poly_wrapped ( type: esriFieldTypeString, alias: Poly Wrapped, length: 5 )
• cathodic_protection ( type: esriFieldTypeString, alias: Cathodic Protection, length: 5 )
• casing ( type: esriFieldTypeString, alias: Casing, length: 5 )
• material_notes ( type: esriFieldTypeString, alias: Material Notes, length: 20 )
• installdt ( type: esriFieldTypeDate, alias: Install Date, length: 8 )
• zone ( type: esriFieldTypeString, alias: Zone, length: 42 )
• creator ( type: esriFieldTypeString, alias: Creator, length: 50 )
• editor ( type: esriFieldTypeString, alias: Editor, length: 50 )
• notes ( type: esriFieldTypeString, alias: Notes, length: 150 )
• enabled ( type: esriFieldTypeSmallInteger, alias: Enabled )
• layer ( type: esriFieldTypeString, alias: Layer, length: 50 )
• created ( type: esriFieldTypeDate, alias: Created, length: 8 )
• edited ( type: esriFieldTypeDate, alias: Edited, length: 8 )
• globalid ( type: esriFieldTypeGlobalID, alias: globalid, length: 38 )
• shape ( type: esriFieldTypeGeometry, alias: SHAPE )
• st_length(shape) ( type: esriFieldTypeDouble, alias: st_length(shape) )

Supported Operations:   Query   Query Attachments   Query Analytic   Generate Renderer   Return Updates

  Iteminfo   Thumbnail   Metadata
